LW/MW/FM digital tuning radio with CD player
For pleasant driving / LW/MW/FM digital tuning radio with CD player

The audio system can only be used when the ignition switch is in the “ON” or “ACC” position.

Mitsubishi Lancer: LW/MW/FM digital tuning radio with CD player. ► When listening to the audio system while the engine is not running, be sure Note

► When listening to the audio system while the engine is not running, be sure to turn the ignition switch to the “ACC” position.
If the ignition switch is left in the “ACC” position, the accessory power will automatically turn off after a certain period of time and you will no longer be able to use the audio system. The accessory power comes on again if the ignition switch is turned from the “ACC” position. Refer to “ACC power autocutout function”.
► If a cellular phone is used inside the vehicle, it may create noise from the audio equipment.
This does not mean that anything is wrong with your audio equipment. In such a case, use the cellular phone at a place as far away as possible from the audio equipment.
► If foreign objects or water get into the audio equipment, or if smoke or a strange odour comes from it, immediately turn off the audio system. We recommend you to have it checked. Never try to repair it by yourself.
Avoid continuous usage without inspection by a qualified person.

Volume and tone control panel

Mitsubishi Lancer: LW/MW/FM digital tuning radio with CD player. 1- PWR (On-Off) switch

1- PWR (On-Off) switch
2- VOL (Volume control) knob
3- Display
4- SOUND (Sound control) switch

To adjust the volume

VOL (Volume control)

Turn the VOL knob (2) clockwise to increase the volume; anticlockwise to decrease the volume.

To adjust the tone

Press the SOUND switch (4) to select: TYPE → FIELD → BASS → MID → TREBLE → FADER → BALANCE → audio control mode OFF.

QUICK ACCESS MODE

To access the sound customization features quickly, push and hold the SOUND switch (4), then turn the switch clockwise or anticlockwise to access your desired sound customization setting. Release the switch to adjust the setting.

HOLD MODE

If the SOUND switch (4) is pushed and held for more than 2 seconds during the audio adjust mode, it will change to “Hold” mode. The selected audio mode will be held until the SOUND switch (4) is pushed for more than 2 seconds again.

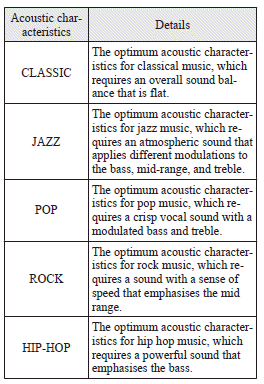

TYPE (Acoustic characteristic selection)

1. Turn the SOUND switch (4) to select the desired music type.
2. Press the SOUND switch (4) to set the audio system to the selected music type.

Mitsubishi Lancer: LW/MW/FM digital tuning radio with CD player. FIELD (Sound field selection)

FIELD (Sound field selection)

1. Turn the SOUND switch (4) to select the desired sound field.
2. Press the SOUND switch (4) to set the audio system to the selected sound field.

Mitsubishi Lancer: LW/MW/FM digital tuning radio with CD player. BASS (Bass tone control)

BASS (Bass tone control)

Turn the SOUND switch (4) to select the desired bass tone.

MID (Midrange tone control)

Turn the SOUND switch (4) to select the desired middle tone.

TREBLE (Treble tone control)

Turn the SOUND switch (4) to select the desired treble tone.

FADER (Front/Rear balance control)

Turn the SOUND switch (4) to balance volume from the front and rear speakers.

BALANCE (Left/Right balance control)

Turn the SOUND switch (4) to balance volume from the left and right speakers.

Mitsubishi Lancer: LW/MW/FM digital tuning radio with CD player. ► When set to 0, it will beep. Note

► When set to 0, it will beep.
► When TYPE or FIELD is changed, the sound will cut out briefly, but this does not indicate a malfunction.
► The audio control mode will shut off if either the radio or CD is operated, or if no adjustment is made within about 10 seconds.
