The fuse capacity and the names of electrical systems protected by the fuses are indicated on the inside of the fuse lid (LHD vehicles), the inside of the glove box (RHD vehicles) and inside of the fuse block cover (inside of the engine compartment).

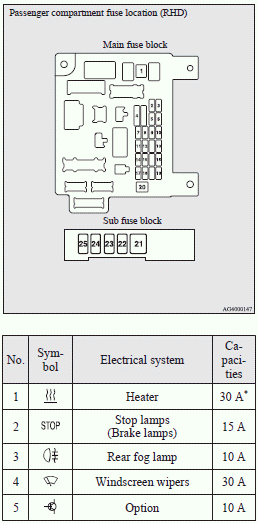

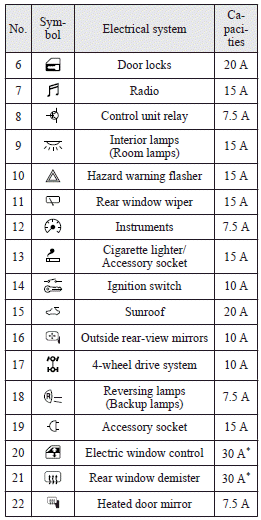

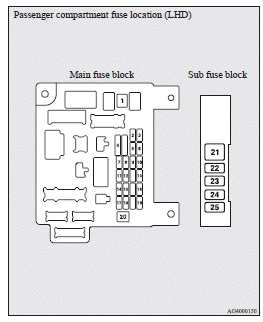

Passenger compartment fuse location table

Mitsubishi Lancer: Fuse load capacity. ► Spare fuses are provided on the lid of the fuse block in the engine compartment. Note

► Spare fuses are provided on the lid of the fuse block in the engine compartment. Always use a fuse of the same capacity for replacement.

Mitsubishi Lancer: Fuse load capacity.

Mitsubishi Lancer: Fuse load capacity.

Mitsubishi Lancer: Fuse load capacity.

Mitsubishi Lancer: Fuse load capacity. : Fusible link

: Fusible link

► Some fuses may not be installed on your vehicle, depending on the vehicle model or specifications.

► The table above shows the main equipment corresponding to each fuse.

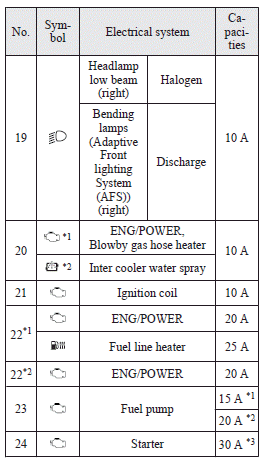

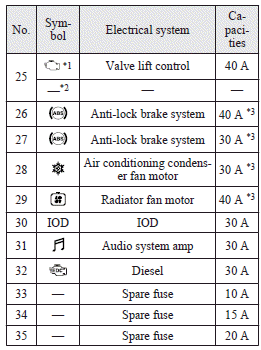

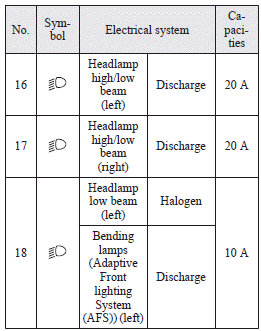

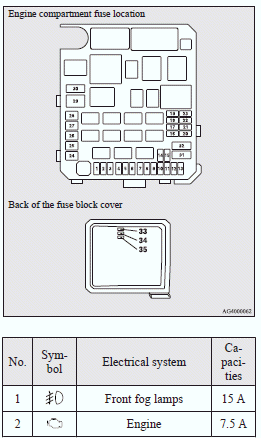

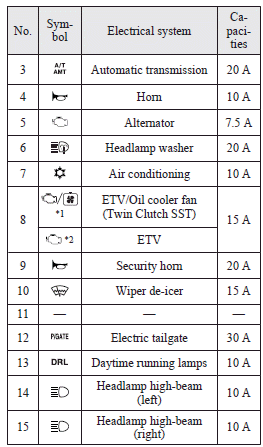

Engine compartment fuse location table

Mitsubishi Lancer: Fuse load capacity. 1: Except for petrol-powered vehicles equipped with turbocharger

1: Except for petrol-powered vehicles equipped with turbocharger
2: Petrol-powered vehicles with turbocharger
3: Fusible link

Mitsubishi Lancer: Fuse load capacity.

Mitsubishi Lancer: Fuse load capacity.

Mitsubishi Lancer: Fuse load capacity.

Mitsubishi Lancer: Fuse load capacity. 1: Except for petrol-powered vehicles equipped with turbocharger

1: Except for petrol-powered vehicles equipped with turbocharger
2: Petrol-powered vehicles with turbocharger
3: Fusible link

► Some fuses may not be installed on your vehicle, depending on the vehicle model or specifications.
► The table above shows the main equipment corresponding to each fuse.

The fuse box does not contain spare 7.5 A, 25 A or 30 A fuses. If one of these fuses burns out, substitute with the following fuse.

7.5 A: 10 A spare fuse
25 A: 20 A spare fuse
30 A: 30 A audio system amp fuse

When using a substitute fuse, replace with a fuse of the correct capacity as soon as possible.
