Mitsubishi Lancer Owners Manual

To adjust the tone
For pleasant driving / LW/MW/FM digital tuning radio with CD changer / To adjust the tone

Press the SOUND switch (4) to select: SUB PUNCH → TYPE → FIELD → BASS → MID → TREBLE → FADER → BALANCE → audio control mode OFF.

Mitsubishi Lancer: To adjust the tone. ► The SUB LEVEL can only be adjusted on vehicles equipped with a premium sound Note

► The SUB LEVEL can only be adjusted on vehicles equipped with a premium sound system.
On vehicles without a premium sound system, when you press the SOUND switch (4), the display starts from TYPE.

QUICK ACCESS MODE

To access the sound customization features quickly, push and hold the SOUND switch (4), then turn the switch clockwise or anticlockwise to access your desired sound customization setting. Release the switch to adjust the setting.

HOLD MODE

If the SOUND switch (4) is pushed and held for more than 2 seconds during the audio adjust mode, it will change to “Hold” mode. The selected audio mode will be held until the SOUND switch (4) is pushed for more than 2 seconds again.

SUB PUNCH (Subwoofer volume control)

To select the desired subwoofer volume level.

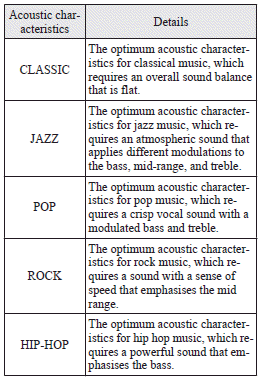

TYPE (Acoustic characteristic selection)

1. Turn the SOUND switch (4) to select the desired music type.
2. Press the SOUND switch (4) to set the audio system to the selected music type.

Mitsubishi Lancer: To adjust the tone. FIELD (Sound field selection)

FIELD (Sound field selection)

1. Turn the SOUND switch (4) to select the desired sound field.
2. Press the SOUND switch (4) to set the audio system to the selected sound field.

Mitsubishi Lancer: To adjust the tone. BASS (Bass tone control)

BASS (Bass tone control)

Turn the SOUND switch (4) to select the desired bass tone.

MID (Midrange tone control)

Turn the SOUND switch (4) to select the desired middle tone.

TREBLE (Treble tone control)

Turn the SOUND switch (4) to select the desired treble tone.

FADER (Front/Rear balance control)

Turn the SOUND switch (4) to balance volume from the front and rear speakers.

BALANCE (Left/Right balance control)

Turn the SOUND switch (4) to balance volume from the left and right speakers.

Mitsubishi Lancer: To adjust the tone. ► When set to 0, it will beep. Note

► When set to 0, it will beep.
► When SUB PUNCH, TYPE or FIELD is changed, the sound will cut out briefly, but this does not indicate a malfunction.
► The audio control mode will shut off if either the radio or CD is operated, or if no adjustment is made within about 10 seconds.
