Towing bar mounting specifications
Starting and driving / Trailer towing / Towing bar mounting specifications

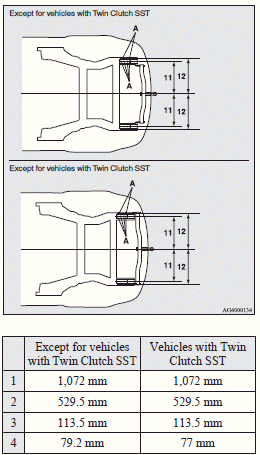

See the following table for fixing points (A) for the towing bar.

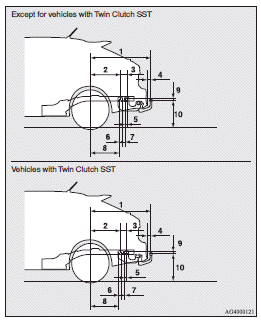

Mitsubishi Lancer: Towing bar mounting specifications.

Mitsubishi Lancer: Towing bar mounting specifications. 1: Vehicles equipped with 16 inch tyres that are without high ground suspensions

1: Vehicles equipped with 16 inch tyres that are without high ground suspensions
2: Vehicles equipped with 18 inchtyres
3: Vehicles equipped with 16 inch tyres that are with high ground suspensions

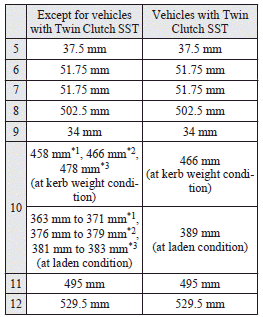

Mitsubishi Lancer: Towing bar mounting specifications. 1: Vehicles equipped with 16 inch tyres that are without high ground suspensions

1: Vehicles equipped with 16 inch tyres that are without high ground suspensions
2: Vehicles equipped with 18 inch tyres
3: Vehicles equipped with 16 inch tyres that are with high ground suspensions

Mitsubishi Lancer: Towing bar mounting specifications. ► The values under item 10 can be varied depending on the loading condition of Note

► The values under item 10 can be varied depending on the loading condition of cargo or luggage.
