Information screen display list
Instruments and controls / Indication lamp, warning lamp, and information screen display list / Information screen display list

When there is information to be announced, such as lamp reminders, a sound is emitted and the screen switches to the displays shown below. Refer to the appropriate page and take the necessary measures.

When the cause of the warning display is eliminated, the warning display goes out automatically.

Mitsubishi Lancer: Information screen display list. ► A warning may be displayed on the information screen and the buzzer may sound Note

► A warning may be displayed on the information screen and the buzzer may sound in the following rare cases.
This is caused by the system picking up interference such as noise or strong electromagnetic waves, and is not a functional problem.
• An extremely strong electromagnetic wave is received from a source such as an illegal radio set, a spark from a wire, or a radar station.
• Abnormal voltage or a static electricity discharge is generated by the operation of installed electrical equipment (including after-market parts).
If the warning display appears many times, we recommend you to consult a MITSUBISHI MOTORS Authorized Service Point.

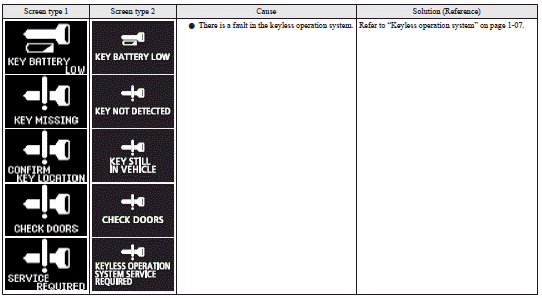

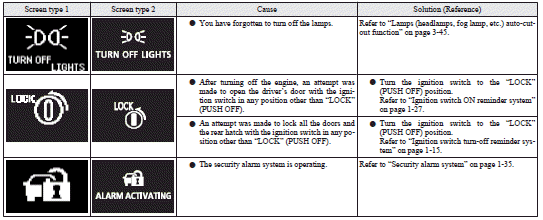

Warning display list (when the ignition switch is “OFF”)

Mitsubishi Lancer: Information screen display list.

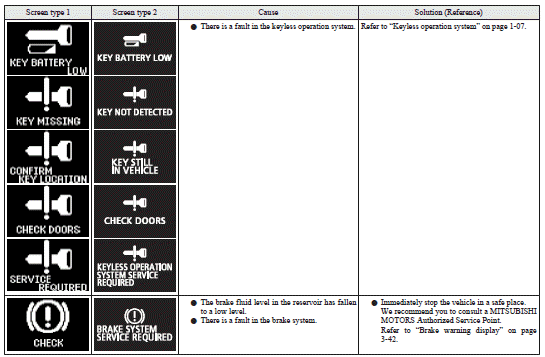

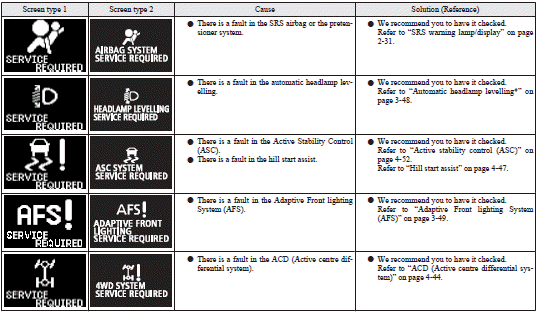

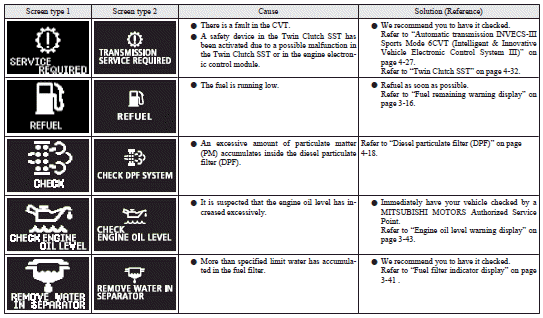

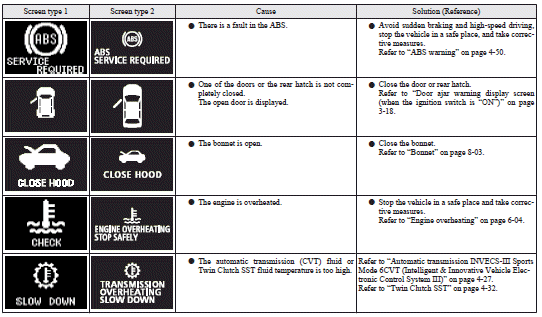

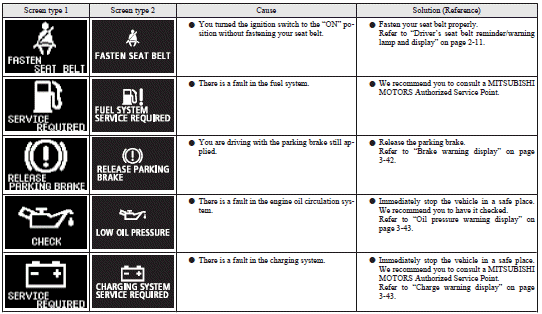

Mitsubishi Lancer: Information screen display list. Warning display list (when the ignition switch is “ON”)

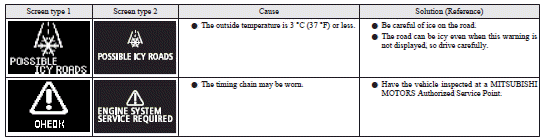

Warning display list (when the ignition switch is “ON”)

Mitsubishi Lancer: Information screen display list.

Mitsubishi Lancer: Information screen display list.

Mitsubishi Lancer: Information screen display list.

Mitsubishi Lancer: Information screen display list.

Mitsubishi Lancer: Information screen display list.

Mitsubishi Lancer: Information screen display list.

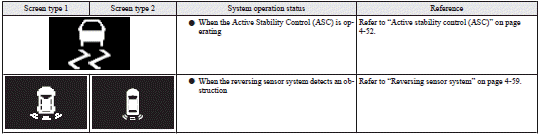

Mitsubishi Lancer: Information screen display list. Other interrupt displays (when the ignition switch is “ON”)

Other interrupt displays (when the ignition switch is “ON”)

The operation status of each system is displayed on the information screen. Refer to the appropriate page for the system for further details.

Mitsubishi Lancer: Information screen display list. This informs you that a periodic inspection is due.

This informs you that a periodic inspection is due.

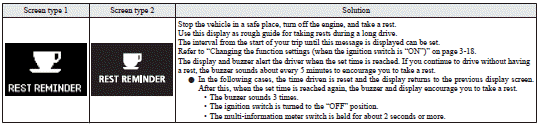

Mitsubishi Lancer: Information screen display list. The setting for rest interval can be changed.

The setting for rest interval can be changed.

Mitsubishi Lancer: Information screen display list. Indication lamps
