Filling the fuel tank
General information / Filling the fuel tank

Mitsubishi Lancer: Filling the fuel tank. Warning Warning

► When handling fuel, comply with the safety regulations displayed by garages and filling stations.
► Before removing the fuel cap, be sure to get rid of your body’s static electricity by touching a metal part of the car or the fuel pump. Any static electricity on your body could create a spark that ignites fuel vapour.
► Perform the whole refueling process (opening the fuel tank filler door, removing the fuel cap, etc.) by yourself. Do not let any other person come near the fuel tank filler. If you allowed a person to help you and that person was carrying static electricity, fuel vapour could be ignited.
► Do not move away from the fuel tank filler until refueling is finished. If you moved away and did something else (for example, cleaning your windscreen) partway through the refueling process, you could pick up a fresh charge of static electricity.
► If the tank cap must be replaced, use only a MITSUBISHI MOTORS original part.

Fuel tank capacity

2WD: 59 litres
4WD: 55 litres

Refueling

1. Before filling with fuel, stop the engine.
2. The fuel tank filler is located on the rear left side of your vehicle.

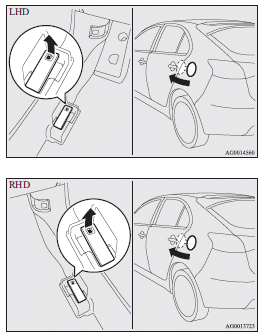

Open the fuel tank filler door by pulling the release lever located on the side of the driver’s seat.

Mitsubishi Lancer: Filling the fuel tank. 3. Open the fuel tank filler tube by slowly turning the cap anticlockwise.

3. Open the fuel tank filler tube by slowly turning the cap anticlockwise.

Mitsubishi Lancer: Filling the fuel tank. A- Remove

A- Remove
B- Close

Mitsubishi Lancer: Filling the fuel tank. Caution Caution

► Since the fuel system may be under pressure, remove the fuel tank filler tube cap slowly. This relieves any pressure or vacuum that might have built up in the fuel tank. If you hear a hissing sound, wait until it stops before removing the cap. Otherwise, fuel may spray out, injuring you or others.

4. While filling with fuel, store the cap in the capholder located on the inside of the fuel tank filler door.

Mitsubishi Lancer: Filling the fuel tank. 5. Insert the gun in the tank port as far as it goes.

5. Insert the gun in the tank port as far as it goes.

Mitsubishi Lancer: Filling the fuel tank. Caution Caution

► Do not tilt the gun.

6. When the gun stops automatically, do not fill with fuel any more.
7. To close, turn the fuel tank filler tube cap slowly clockwise until you hear clicking sounds, then gently push the fuel tank filler door closed.
